WHY THIS RESOURCE MATTERS

Keep visible fire-safety conditions actionable

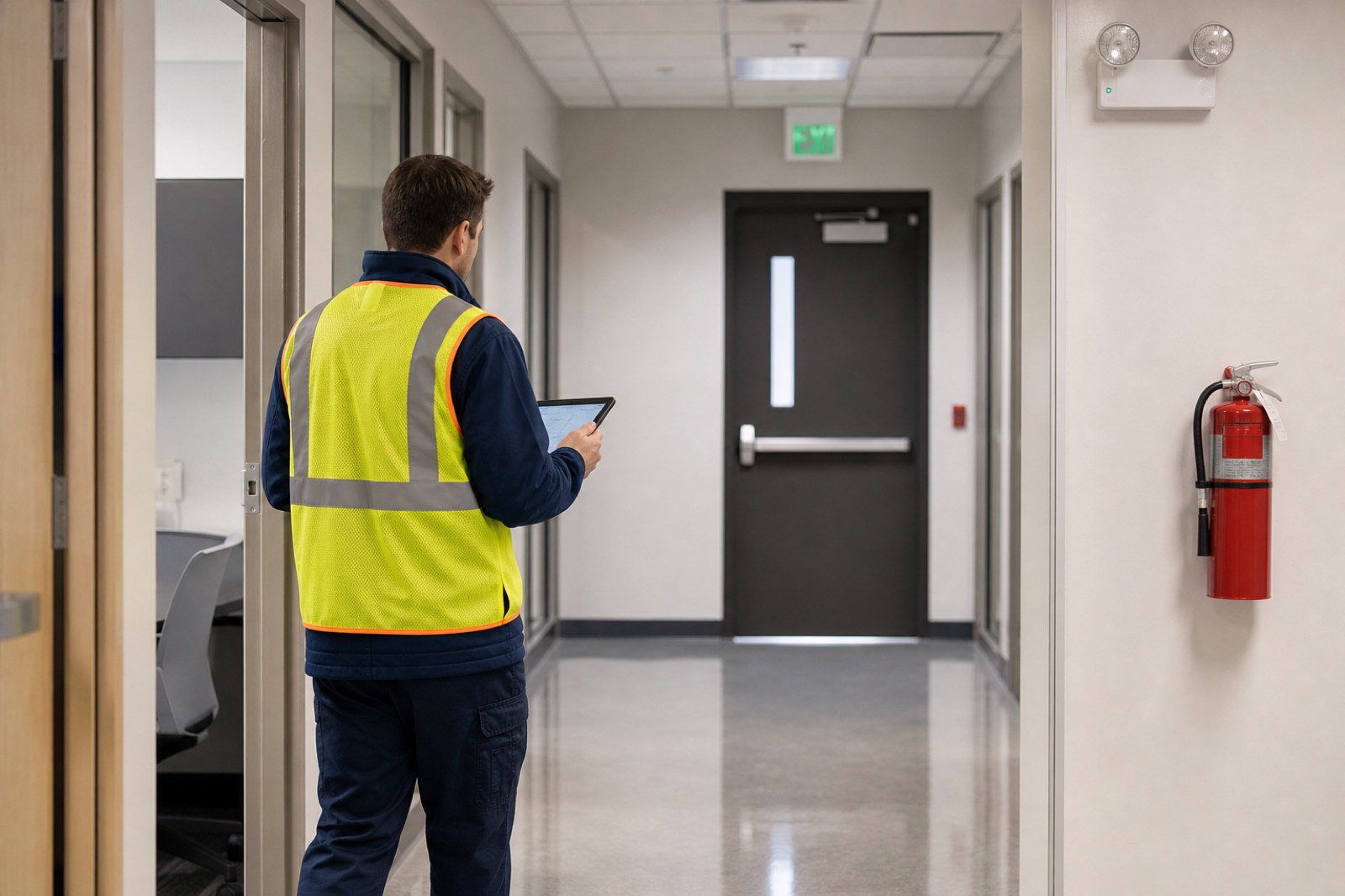

A routine visual fire-safety walk helps facilities teams notice changes between formal service visits: storage in an escape route, a damaged fire door, an obstructed extinguisher, or a warning on a control panel. It does not replace inspection, testing, or certification by competent specialists.

Record the function affected and the people relying on it. A door wedged open, for example, is not simply a hardware defect; its location, occupancy, surrounding compartment, and reason for being held open influence the response. Follow the site fire strategy and local requirements when escalating any observation.

CHECKLIST

What to include

  1. 01Escape routes and exits
  2. 02Exit signs and emergency lighting
  3. 03Fire doors
  4. 04Extinguishers
  5. 05Alarm panel indicators
  6. 06Sprinkler clearance
  7. 07Combustible storage
  8. 08Hot-work controls
  9. 09Emergency information
  10. 10Defect escalation and closeout

WHAT TO LOOK FOR

Visible conditions to escalate clearly

Escape route change

Storage, locked exits, damaged signs, poor lighting, or altered circulation should identify the route and occupied area served.

Fire-door condition

Doors that are wedged, damaged, misaligned, missing hardware, or unable to close need an exact door reference.

Equipment access

Extinguishers, hose equipment, call points, and panels should be visible, accessible, identified, and free from obvious damage.

Alarm indication

Fault, isolation, or warning indicators require prompt handling under site procedures rather than informal resetting by the inspector.

Compartment and storage

Visible service gaps, damaged seals, combustible accumulation, or unsuitable storage should be referred for competent assessment.

FIELD WORKFLOW

How to use this template

  1. 1

    Review the site fire plan, current impairments, occupancy changes, recent work, and the boundaries of the visual walk before starting.

  2. 2

    Trace escape routes from occupied areas to final exits while checking referenced doors, signs, emergency lighting, equipment access, and visible panel condition.

  3. 3

    Notify the responsible person immediately when a protection is impaired, recording any authorized temporary measure and the specialist response requested.

  4. 4

    Close the finding only after evidence shows the condition was corrected and any affected system was returned to service through the proper process.

PRIORITY GUIDE

Respond according to the protection affected

01

Immediate fire-plan action

Use when escape, warning, containment, or first-response arrangements are visibly impaired and temporary controls may be required.

02

Competent service visit

Use for damaged or faulted specialist equipment that needs authorized inspection, testing, repair, and documented return to service.

03

Housekeeping or records

Use for access, signage, storage, labeling, or documentation issues that can be corrected without altering specialist systems.

FIELD EXAMPLE

Example: a wedged fire door

Record the door number, floor, corridor, direction of escape, visible label, closer condition, and the object holding it open. Ask why the door is being wedged; repeated behavior may reveal an operational problem that repair alone will not solve. Notify the responsible person, remove the obstruction only when authorized and safe, and verify that the door closes into the frame while arranging competent review of any damage.

BEFORE YOU START

Adapt it to the job

Names, inspection frequency, acceptance criteria, retention rules, and sign-off responsibilities vary by project and jurisdiction. Remove irrelevant items and add the exact standards, drawings, specifications, and responsible people that apply to your work.

Follow local fire codes and inspection frequencies. Specialist systems must be checked by qualified personnel.
